Thermal Break Villa Door
Front Security Door Iron French Double Glazed Thermal Break Villa Exterior
- EN 14351-1 CE Standard
- PA66 Thermal Barrier
- RC3 Anti-Theft Rating
Certified Architectural Openings
High-Performance Custom Oversized Entry Systems
Direct factory-engineered entrance systems designed for luxury villas, commercial facades, and high-wind loads. Fully compliant with European CE, North American NFRC, and Australian AS2047 codes.
Hotel Glass Entry

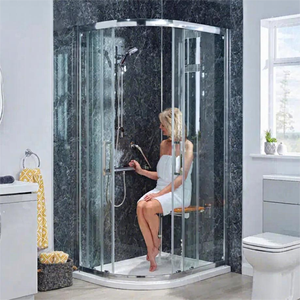

Customized Hotel Bathroom Glass Corner Entry Enclosures & Doors
- 8mm/10mm Tempered Safety Glass
- Anodized Profile Finish
- Zero Water Penetration
Smart Pivot Entrance
Aluminum Double Pivot Door with Smart Lock for Modern Villa Entrance
- German Pivot Hardware (800kg Load)
- Biometric/Keyless Access
- Max Sash Height: 6000mm
Acoustic Aluminum
RG50 Soundproof Casement Entry Door Double Tempered Glazed
- Sound Insulation Rw ≥ 42 dB
- EPDM Triple Sealing Gasket
- Ultra-Slim Sightline Framework
Thermal Break Patio
American Standard Thermal Break Aluminum Patio & Exterior Entry Doors
- NFRC & AAMA Certified
- Low-E Argon Filled Glass
- Powder Coated Matte Black Finish
Frameless Commercial
Frameless Glass Storefront Entrance Doors for Boutique & Retail
- 12mm Ultra-Clear Glass
- Heavy Duty Hydraulic Floor Springs
- High Traffic Anti-Sag Test
Solid Wood Hybrid
Modern Villa Solid Wood Exterior Pivot Door with Aluminum Core
- Structural Steel-Aluminum Skeleton
- Fluorocarbon Exterior Shield
- Custom Teak/Oak Veneers
Luxury Villa Pivot
Exterior Anti-Theft Aluminum Alloy Safety Pivot Door for Luxury Entry
- Multi-Point Automatic Deadbolt
- Wind Load Rating: Class C5
- CE EN 1627 RC3 Certification
Executive Sourcing Guide: CE Certified Oversized Entry Door Manufacturing
In modern high-end residential and commercial architecture, entry door systems are no longer passive physical boundaries; they are highly sophisticated facade elements expected to withstand extreme wind loads, prevent thermal bridging, deliver exceptional acoustic comfort, and seamlessly integrate into smart building automation networks. When sourcing CE Certified Oversized Entry Doors from Chinese manufacturing hubs, global B2B buyers—including architectural specification writers, facade consultants, real estate developers, and commercial trade importers—must navigate structural engineering parameters, harmonized standards compliance, and extrusion precision.
Operating out of Foshan, Guangdong—the world’s premier industrial cluster for architectural aluminum extrusion—Vancoor Entrance System Co., Ltd. (operating a 50,000 square-meter specialized production base established in 1993) manufactures custom thermal break aluminum windows, oversized pivot doors, heavy-duty French doors, and unitized architectural fenestration systems. With over three decades of engineering experience and more than 30 proprietary patents, Vancoor bridging thermal barrier performance with modern structural aesthetics.
Harmonized CE Compliance
Full conformance with EN 14351-1:2006+A2:2016 for external pedestrian doorsets. Complete Factory Production Control (FPC) and Declaration of Performance (DoP) documentation for European Union customs entry.
Structural Integrity & Load
Engineered for monumental heights up to 6000mm. Extruded from 6063-T6 and 6005-T6 structural aluminum alloys with wall thicknesses up to 3.0mm to resist wind pressure loads exceeding Class C5 (EN 12210).
Thermal Barrier Engineering
Polyamide PA66 GF25 structural thermal breaks fused with high-density polyurethane insulation cores achieve thermal transmittance coefficients ($U_d$) as low as 0.80 W/(m²·K).
CE Certification Standards (EN 14351-1) for Oversized Doorsets
For architectural entry doors entering the European Economic Area (EEA), CE marking is not a cosmetic label—it is a statutory mandatory requirement under the EU Construction Products Regulation (CPR No 305/2011). Oversized entry doors feature high sash mass (often exceeding 400 kg to 800 kg per panel) and expansive surface areas, making rigorous physical performance testing critical to prevent field failures.
Vancoor entrance systems undergo rigorous third-party laboratory testing to establish certified performance metrics across five primary structural domains:
| Performance Criteria | European Test Standard | Achieved Classification / Metric | Engineering Significance for B2B Buyers |
|---|---|---|---|
| Resistance to Wind Load | EN 12210 / EN 12211 | Class C5 / P3 ≥ 2000 Pa | Prevents frame deflection and structural fatigue under coastal gale conditions. |
| Air Permeability | EN 12207 / EN 1026 | Class 4 (600 Pa) | Eliminates draft infiltration; ensures strict envelope airtightness for HVAC efficiency. |
| Watertightness | EN 12208 / EN 1027 | Class E900 (Unsheltered 900 Pa) | Guarantees zero water penetration during severe driving rain and storms. |
| Thermal Transmittance ($U_d$) | EN ISO 10077-1 / -2 | $U_d \le 0.85 \text{ W/(m}^2\text{K)}$ | Exceeds Passive House thermal envelope targets; prevents condensation. |
| Burglar Resistance | EN 1627 to EN 1630 | RC2 / RC3 / RC4 Certification | Multi-point motorized locking resists manual impact and mechanical attack tools. |
| Acoustic Rating ($R_w$) | EN ISO 140-3 / ISO 717-1 | $R_w (C; C_{tr}) = 42 (-1; -4) \text{ dB}$ | Attenuates urban environmental noise for peaceful indoor sanctuary spaces. |
To maintain these standards, Vancoor integrates multi-chambered polyamide strips (PA66 reinforced with 25% glass fiber) inside the thermal break profile. Furthermore, the structural glass units (IGU) utilize warm-edge spacers, argon gas filling, and triple-laminated toughened safety glass (e.g., 6mm Low-E + 16Ar + 6mm Clear + 1.52PVB + 6mm Clear) to prevent thermal transfer and dynamic structural distortion.
Future Sourcing & Engineering Trends in Oversized Entrance Systems
As international architectural preferences pivot toward expansive glass sightlines, seamless indoor-outdoor living, and net-zero operational carbon, the procurement landscape for oversized exterior doors is evolving rapidly. B2B importers and project contractors must align with manufacturers adopting next-generation production processes.
1. Motorized Heavy-Duty Pivot Hardware
Traditional side-hung butt hinges fail under door sashes exceeding 300 kg. Future trends favor concealed heavy-duty offset pivot systems capable of carrying up to 1,000 kg (2,200 lbs) with 3D mechanical adjustability, soft-closing hydraulic dampers, and integrated electromagnetic hold-open functions.
2. Biometric & Smart Building Automation
Modern oversized entry doors are shifting from key-operated locksets to fully integrated electronic multi-point locking mechanisms. Microprocessor-controlled locks communicate via RS485, Wi-Fi, or KNX protocols, enabling facial recognition, fingerprint scanning, RFID access, and motor-driven latch retraction.
3. Ultra-Slim Sightline Facade Integration
Architects demand minimal visible aluminum frame profiles. Innovations in structural silicon bonding (Structural Glazing Tape & Dow Corning 2-part silicones) allow glass panels to act as structural bracing elements, reducing visible frame sightlines to under 20mm while maintaining structural stiffness.
4. Sustainable & Recycled Low-Carbon Aluminum
With global ESG standards tightening, suppliers are migrating toward prime aluminum billets extruded using hydro-powered smelting processes. Recycled aluminum utilization reduces embodied carbon footprint by up to 85%, compliant with EU Green Deal directives.
Vancoor Manufacturing Heritage & Quality Control Protocol
Located in Foshan, China, Vancoor Entrance System Co., Ltd. controls the complete manufacturing chain in-house. A 50,000 m² production footprint eliminates sub-assembly outsourcing risks, ensuring precision tolerances across all custom oversized doorsets.
Our quality assurance workflow operates under a zero-defect mandate across five strict operational gates:
- Raw Material & Alloy Spectrometry Verification: Every batch of 6063-T6 aluminum extrusion profile undergoes chemical composition testing and Webster hardness checking (≥ 12 HW) prior to machining.
- 5-Axis CNC Milling & Corner Crimping: Hinge mortises, lock gear slots, and drainage weep holes are machined on 5-axis German CNC centers. Frame corners undergo mechanical pin-crimping combined with two-component polyurethane corner adhesives for structural rigidity.
- Surface Finishing Excellence: Surface treatments include Qualicoat Class 2 Architectural Powder Coating, Fluorocarbon PVDF spray coating (resisting 3,000 hours of salt spray testing), and Qualanod Anodizing for marine environments.
- Pre-Shipment Trial Assembly & Alignment: 100% of custom oversized entry doors are fully assembled on factory test rigs to verify pivot balance, multi-point lock throw engagement, and perimeter EPDM rubber seal compression.
- Export Fumigated Wooden Crating: Doorsets are clad in protective scratch-resistant PE films, shielded with foam corner guards, and enclosed in fully enclosed IPPC-certified fumigated plywood crates reinforced with steel strapping.
Frequently Asked Questions (FAQ) for Overseas B2B Buyers
What is the typical production lead time for custom CE-certified oversized entry doors?
Once CAD shop drawings are officially signed off and technical specifications are locked, standard factory production and assembly take approximately 4 to 5 weeks. For complex motorized pivot doors or specialized PVDF custom colors, production takes 5 to 6 weeks. Global sea freight shipping schedules vary depending on the destination port (e.g., 14-20 days to West Coast USA, 28-35 days to European main ports).
How do you ensure structural compliance with regional building codes (USA, EU, Australia)?
Our engineering department custom-configures profile wall thickness, glass build-ups, thermal break widths, and hardware loading according to your target location. We provide complete structural calculation sheets, shop drawings, and CE Declaration of Performance (DoP) certificates for Europe, NFRC thermal metrics for North America, and AS2047 test reports for Australia.
What is the maximum achievable size for a custom aluminum pivot entry door?
Using our heavy-duty internal steel-skeleton reinforced extrusion system, we manufacture single-panel pivot doors up to 3000mm (10 feet) in width and up to 6000mm (20 feet) in height, with individual sash weights engineered up to 800 kg using heavy-duty hydraulic floor springs.
Do you accept custom architectural CAD/BIM drawings and OEM specification requests?
Yes. Every order is built to custom dimensions. Our English-speaking project engineering team reviews your PDF architectural plans or DWG CAD files and returns comprehensive 2D production drawings, elevation schedules, structural wind load calculations, and technical cost proposals within 24 hours.
How are oversized doors protected against damage during international ocean transport?
Each unit is wrapped in multi-layer protective film, padded with high-density EVA foam edge guards, and packed inside custom-built, heavy-duty fumigated plywood crates. Doors are loaded using specialized crane rigs to ensure zero shifting or glass breakage inside shipping containers.
What installation support and warranties are provided for overseas projects?
We provide step-by-step 3D installation manuals, exploded structural assembly diagrams, and high-definition video walkthroughs. Our project engineers provide real-time remote technical assistance via video call. All aluminum profiles carry a 10-to-20 year finish warranty, and hardware mechanisms carry a 5-year replacement guarantee.
Partner with a Leading CE Certified Entry Door Manufacturer
Elevate your project with engineered thermal break oversized entrance systems direct from our Foshan manufacturing base. Submit your drawings for immediate engineering analysis and factory direct pricing.
