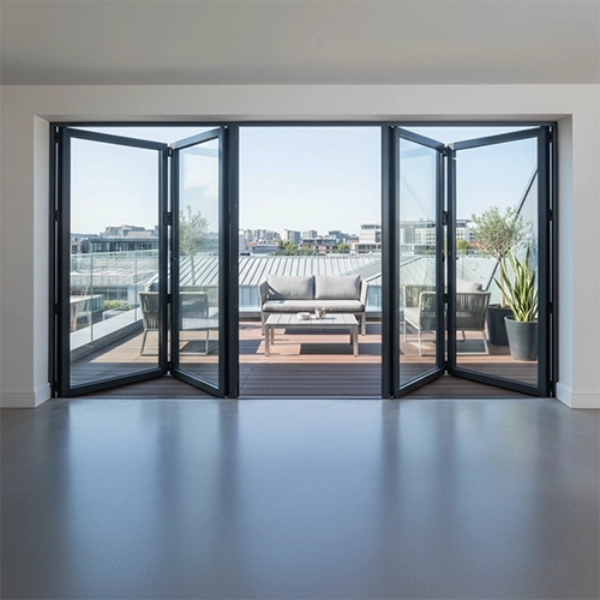

Heavy-Duty Thermal Break Bi-Fold Door Systems for Global Projects
Vancoor Entrance System Co., Ltd. designs and manufactures high-performance custom thermal break aluminum bi-fold doors engineered for luxury villas, commercial resorts, and high-end architectural projects. Built with precision 6063-T5 aluminum extrusions and polyamide PA66 thermal barriers, our bi-fold systems seamlessly connect indoor and outdoor spaces while exceeding international standards for thermal insulation, structural strength, and hurricane-grade weatherproofing.
Key B2B Specification Highlights
- Profile Technology: High-strength 6063-T5 aluminum alloy with 1.8mm – 2.5mm wall thickness.
- Thermal Insulation: Polyamide PA66 nylon thermal break strip reduces heat transfer (U-Value ≤ 0.30 BTU/h·ft²·°F).
- Expansive Openings: Supports height up to 3000mm and panel spans up to 12+ meters (2 to 10+ folding sashes).
- Glazing Options: Double/Triple tempered, Low-E insulated glass with Argon gas filling; laminated impact glass optional.
- Hardware & Security: German multi-point locking gear, stainless steel top-hung/bottom-roller track rated for 100,000+ cycles.
- Code Compliance: Tested for NFRC, CE, AS2047, and ISO 9001:2015 specifications.
Technical Performance Parameters
| Frame Material | High-Precision 6063-T5 Extruded Aluminum Alloy |
|---|---|
| Profile Wall Thickness | 1.8mm to 2.5mm for heavy-duty structural stability |
| Thermal Barrier | PA66 Polyamide Nylon Reinforcement Strip (20mm - 24mm width) |
| Glass Configuration | 5mm+12Ar+5mm Double Tempered Low-E / Triple Glazed / Impact Laminated Glass |
| Hardware Brands | CMECH, SIEGENIA, HOPO, ROTHO, or Custom European Premium Hardware |
| Sealing & Gaskets | Triple-Seal EPDM Weatherstripping Gaskets |
| Surface Finish | AkzoNobel Powder Coating, Anodized, PVDF Fluorocarbon, Wood-Grain Transfer |
| Wind Pressure Resistance | Up to 4500 Pa (P3 / Class 5 compliance) |
| Water Tightness | 600 Pa (Class 9A compliance) |
| Acoustic Performance | Sound Insulation Rating Rw up to 42 dB |
Why Overseas Buyers Choose Vancoor Bi-Fold Systems
We provide full B2B support, custom engineering shop drawings, and turnkey fabrication for developers, architects, and importers across North America, Europe, Australia, and the Middle East.
Structural Security
Integrated multi-point security shoot-bolts engage at top, bottom, and interlock junctions to provide unmatched protection against intrusion and storm wind loads.
Thermal Energy Efficiency
Our insulated thermal break profiles significantly reduce building U-factors, lowering HVAC power consumption in both extreme hot and cold climates.
Flexible Opening Configurations
Tailored panel folding choices (inward or outward folding, 2+2, 3+1, 5+0, 6+6 configurations) with flush low-threshold options for seamless indoor-outdoor transitions.
Frequently Asked Questions
What makes Vancoor Aluminum Bi-Fold Doors an energy-efficient choice for global projects?
Vancoor Entrance System Co., Ltd. manufactures folding doors using high-grade 6063-T5 extruded aluminum profiles equipped with integrated PA66 polyamide thermal break strips. When combined with Low-E double or triple tempered glazing and argon gas fill, heat conduction is drastically reduced, helping your project satisfy strict regional energy compliance standards (such as NFRC, Title 24, and CE standards).
What are the maximum dimensions and panel configurations available for bi-fold doors?
We specialize in heavy-duty, large-span custom configurations. Individual sashes can reach up to 3000mm in height and 1000mm in width. By combining multiple panels (e.g. 3+1, 5+0, 6+6, or up to 10+ sashes), openings exceeding 12 meters wide can be seamlessly filled with light, effortless sliding movement.
How do your aluminum bi-fold doors perform under heavy wind and storm conditions?
Our bi-fold sashes utilize reinforced multi-chamber aluminum structural extrusions, heavy-duty stainless steel top/bottom tracks, and triple-sealed EPDM gaskets. This combination delivers exceptional resistance to air infiltration, heavy rain penetration, and hurricane-force wind pressure.
What surface finishes and RAL color options do you provide for custom architectural doors?
We offer architectural-grade powder coatings (AkzoNobel / PPG), anodized finishes, fluorocarbon (PVDF) coatings for coastal high-salinity zones, and realistic wood-grain thermal transfer prints. Full custom RAL color matching is available for all project orders.
What quality assurance and export packaging standards are used for international sea transport?
Every order undergoes rigorous factory testing and pre-assembly verification. All components are wrapped in protective PE anti-scratch film, fitted with corner protection guards, wrapped in bubble cushioning, and packed securely inside sealed export plywood crates to guarantee damage-free arrival at destination ports.
Request Factory-Direct Quotation & CAD Design Proposal
Send your architectural CAD/PDF drawings or project dimensions to our engineering team. We return shop drawings, technical specifications, and factory-direct pricing within 24 hours.
