Featured Architectural Entrance Systems
Factory-direct engineered aluminum and structural glass door solutions tailored for global commercial developments, luxury residential villas, and international distribution networks.

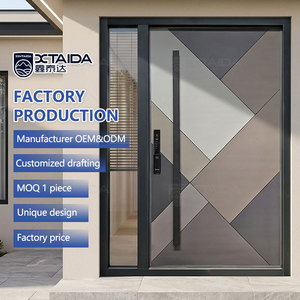

Luxurious Multi-color Stitched Aluminum Entry Door
Engineered with high-density multi-chamber acoustic cores and PA66 polyamide thermal breaks, achieving STC 42 sound insulation for modern residential facades.
Inquire Now

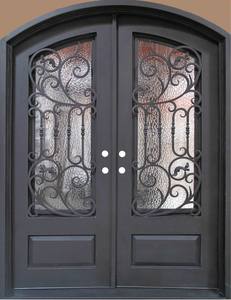

Elegant Low-E Glass Front Swing Entry Door
ENERGY STAR certified double/triple pane Low-E glass system with structural anti-sagging heavy-duty hinges designed for high-traffic villa and commercial entrances.
Inquire Now

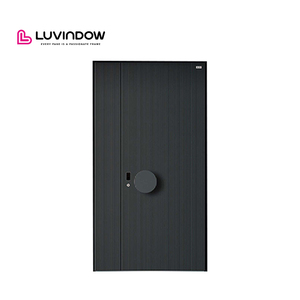

Luvindow Security Aluminum Door with Smart Lock
Integrated bi-metric IoT smart lock entrance system featuring multi-point anti-pry locking gear, reinforced 6063-T6 aluminum frames, and 3D adjustable concealed hinges.
Inquire Now

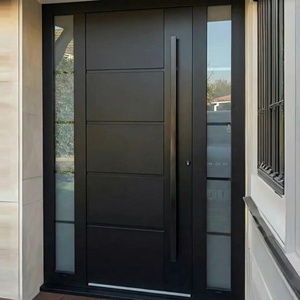

Premium Weatherproof Minimalist Exterior Entrance Door
Sleek minimalist architectural profile incorporating continuous EPDM sealing gaskets, engineered to withstand extreme wind-driven rain up to 1000 Pa test pressure.
Inquire Now

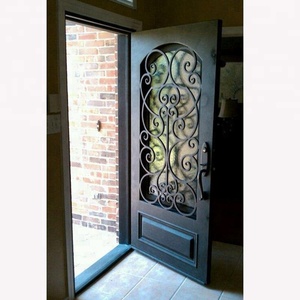

Heavy-Duty Iron-Inspired Aluminum Metal Safety Door
Combines industrial steel aesthetics with lightweight, zero-rust extruded aluminum cladding. Ideal for luxury residential estates requiring high structural security.
Inquire Now

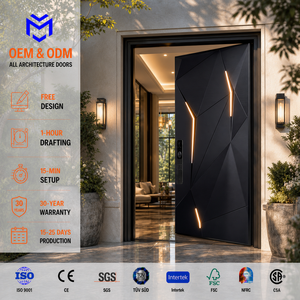

Bulletproof & Hurricane Impact Aluminum Security Pivot Door
Heavy-duty structural pivot entrance system fitted with SGP laminated impact glass, tested to Florida HVHZ wind load requirements and bulletproof security levels.
Inquire Now

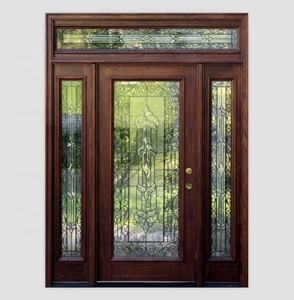

Luxury Wood-Texture Aluminum Glass Front Entrance Door
Combines the natural warmth of timber-grain heat transfer finishes with zero-maintenance, warp-free aluminum structural framing and decorative glass lites.
Inquire Now
Commercial Fire-Rated & Security Aluminum Entrance Door
UL and CE certified fire-rated aluminum entrance system featuring intumescent thermal expanders, panic exit hardware, and reinforced commercial glazing profiles.
Inquire NowArchitectural Whitepaper: Structural Evolution of Aluminum Glass Entrance Systems
Modern architectural design is undergoing a paradigm shift. Exterior building envelopes no longer view entry doors merely as functional access barriers; they are now evaluated as critical engineering components responsible for structural load resistance, building energy envelope optimization, acoustic isolation, and architectural branding. The global fenestration market has rapidly shifted from traditional timber and uninsulated hollow metal doors toward high-performance thermal break aluminum glass entry doors.
As a leading Chinese manufacturer and exporter based in Foshan—the world's premier aluminum extrusion industrial cluster—our engineering teams produce system-matched entrance doors that address the rigorous demands of modern structural codes (including US AAMA/NFRC, European CE EN 14351-1, and Australian AS2047 standards).
Integration of multi-chambered Polyamide PA66-GF25 thermal breaks reduces frame thermal conductivity, achieving U-factors below 0.22 BTU/h·ft²·°F (U-value < 1.2 W/m²K).
Extruded from high-tensile 6063-T6 aluminum alloys with minimum wall thicknesses of 2.0mm to 3.0mm, supporting heavy multi-point locking gear and bullet-resistant infill panels.
Dual-seal EPDM perimeter gaskets combined with asymmetric double or triple insulating glass units (IGU) deliver acoustic dampening up to Sound Transmission Class (STC) 45.
Metallurgy, Glazing Technology & Manufacturing Engineering Specs
Understanding the technical differentiation in aluminum door manufacturing is essential for global procurement directors, commercial project managers, and architectural specifiers. A high-performance door system relies on exact material chemistry, surface treatment longevity, and thermal break geometry.
1. Aluminum Alloy Extrusion Chemistry (6063-T6 vs. 6061-T6)
Our facility utilizes primary, non-recycled billet extrusions adhering to GB/T 5237 standards. Aluminum alloy 6063-T6 provides the ideal balance of surface finish quality, intricate extrusion detail for thermal break insertion, and tensile yield strength (minimum 170 MPa). For structural mega-pivot doors exceeding 3.5 meters in height, high-load structural members utilize 6061-T6 alloy to withstand severe wind pressure forces (up to Design Pressure DP100 ratings).
2. Polyamide PA66-GF25 Thermal Insulation Strips
Uninsulated aluminum exhibits high thermal conductivity (approx. 200 W/m·K). To stop energy transfer, our thermal break doors incorporate imported Technoform Polyamide PA66 reinforced with 25% glass fiber. This composition matches the linear thermal expansion coefficient of aluminum (2.3 × 10⁻⁵/K), ensuring structural integrity without structural shear separation under extreme seasonal temperature differentials (-40°C to +80°C).
3. Surface Finishing Technologies for Harsh Coastal & Urban Environments
As an international exporter, we apply specialized surface finishes to resist atmospheric oxidation, salt spray corrosion, and severe UV degradation:
- PVDF Fluorocarbon Coating (Kynar 500): 3-Coat/3-Bake system exceeding AAMA 2605 specifications. Resistant to chalking and fading for over 30 years in coastal or tropical UV climates.
- Qualicoat Class 2 Architectural Powder Coating: Ultra-durable polyester coatings offering superior impact resistance and scratch protection, available in over 200 RAL custom colors.
- Advanced Anodizing & Electrophoresis: 20-25 micron hard-anodized film thickness providing metallic satin finishes with maximum surface hardness and salt-spray resistance (>3000 hours ASTM B117 testing).
- 3D Timber-Grain Heat Transfer: Combines real-wood aesthetic warmth with zero-warping, zero-rot aluminum durability for traditional and contemporary luxury frontages.
Global Procurement Selection Matrix: Entrance Door Typologies
Compare core structural parameters across primary architectural door classifications to select the optimum system for your project specifications.
| Door System Typology | Structural Frame Depth | Thermal U-Factor (W/m²K) | Max Single Leaf Dimension | Acoustic Rating (STC) | Target Architectural Application |
|---|---|---|---|---|---|
| Heavy-Duty Thermal Swing Door | 75mm – 90mm | 1.1 – 1.4 | 1.3m (W) × 3.0m (H) | STC 40 – 43 | Luxury Villas, High-End Residential Entrances |
| Architectural Grand Pivot Door | 100mm – 120mm | 1.3 – 1.6 | 2.2m (W) × 4.5m (H) | STC 38 – 42 | Modern Mansion Facades, Corporate Headquarters |
| Thermal Break Bi-Fold Door System | 75mm – 80mm | 1.4 – 1.8 | 1.0m (W) × 3.5m (H) / Leaf | STC 36 – 40 | Resort Patios, Expansive Restaurant Frontages |
| Hurricane Impact & Security Door | 90mm – 110mm | 1.2 – 1.5 | 1.4m (W) × 3.2m (H) | STC 42 – 46 | Coastal High-Velocity Hurricane Zones (HVHZ) |
| Commercial Automatic Glass Entrance | 100mm Series | 1.6 – 2.0 | 1.8m (W) × 3.0m (H) | STC 35 – 38 | Shopping Malls, Airports, Hotel Lobbies |
Next-Gen Sourcing & Industry Procurement Trends (2026–2030)
As global building regulations tighten around carbon footprint accounting and smart city connectivity, real estate developers, general contractors, and fenestration importers must align their supply chains with next-generation technology trends:
Mechanical keys are rapidly giving way to smart access control modules fully concealed within the door leaf profile. Modern entry systems now mandate 3D facial recognition, encrypted RFID, mobile app Bluetooth control, and motorized multi-point automatic deadbolt locks.
International procurement offices require EPD certification and low-carbon recycled aluminum sourcing to earn LEED v4 and BREEAM green building points. Chinese manufacturers are transitioning to clean energy smelting and closed-loop material re-smelting.
The integration of VIG allows ultra-thin glass profiles (under 12mm overall thickness) to achieve thermal performance matching traditional 36mm triple-pane glass (U-values below 0.60 W/m²K), enabling ultra-slim frame sightlines without energy penalties.
Why Global Importers Partner with Vancoor Entrance System Co., Ltd.
Founded in 1993, Vancoor Entrance System Co., Ltd. has grown over three decades into a leading engineering manufacturer of custom thermal break aluminum windows, entry doors, and curtain wall systems. Situated in Foshan, China, our company integrates end-to-end extrusion processing, precision CNC machining, automated glazing assembly, and rigorous export compliance testing.
- 50,000 m² Advanced Production Facility: Equipped with European automated CNC cutting, corner-crimping, and milling lines capable of delivering over 500,000 square meters of high-precision fenestration products annually.
- 30+ Intellectual Property Patents: Continuous R&D investment in silent multi-seal weatherproofing, structural hidden pivot hinges, and thermal barrier integrity.
- 100% Pre-Assembly Quality Control: Every custom order undergoes complete factory mock-up assembly, hardware function testing, and squareness dimensional checks prior to export container loading.
- Global Engineering & CAD Support: Our dedicated English-speaking technical team provides 24-hour turnaround on CAD shop drawings, structural calculation sheets, and custom spec proposals for B2B tenders.
- Export Shipping Protection: Industrial heavy-duty packaging featuring surface protection film, impact-resistant corner guards, non-fumigation plywood crates, and direct container strapping.
Frequently Asked Questions (FAQ) for Overseas Procurement Officers
Direct technical clarity on sourcing, customization, building code compliance, and international logistics.
Once architectural shop drawings are formally approved and deposit confirmation is received, our standard manufacturing lead time is 4 to 5 weeks (28-35 calendar days). Complex custom finishes (such as PVDF custom color matching or specialized wood-grain transfers) or high-volume project orders may require 5 to 6 weeks. Real-time production milestone tracking photos are shared with buyers throughout the process.
Yes. Our engineering department configures profiles, thermal barriers, structural glass packages, and hardware specifically matching target regional codes. We provide test reports and engineering documentation for NFRC/AAMA (North America), CE EN 14351-1 (Europe), and AS2047/AS1288 (Australia & New Zealand), including impact-rated certifications for coastal storm zones.
Every product we export is manufactured to exact measure. Clients submit CAD files, PDF architectural elevations, or schedule specifications. Our engineering team reviews wind load requirements, opening structural constraints, and hardware specifications, returning full factory shop drawings, section views, and a detailed commercial quote within 24 hours.
We supply a complete array of tempered safety glass options adhering to ANSI Z97.1 and EN 12150. Configurations include double-glazed (e.g., 6mm Low-E + 12Ar + 6mm Clear), triple-glazed acoustic systems, laminated safety glass (using Solutia Vanceva or Kuraray SGP interlayers for hurricane/security resistance), privacy smart switchable glass, and ceramic fritted decorative panels.
Export packaging follows a multi-tier protective strategy: 1) Full-surface adhesive protective film prevents powder-coat scratching; 2) High-density polyethylene corner protectors shield critical frame joints; 3) Multi-layer bubble wrap seal; 4) Fully enclosed, ISPM-15 compliant fumigation-free wooden crates or steel-frame A-frames designed for easy forklift unloading.
We support overseas installation teams through comprehensive installation drawing packages, step-by-step video tutorials, 3D section guides, and direct remote engineering consultations via video conference. For major commercial developments, remote project engineering oversight is maintained through site management teams.
Partner with China's Premier Aluminum Door Manufacturer
Send your CAD drawings, door schedules, or project specifications to our engineering team today. Receive a comprehensive technical proposal and factory-direct pricing within 24 hours.
