Precision Engineering
High-Performance Architectural Door Collection
Explore our export-certified, factory-direct thermal break aluminum door systems engineered for extreme climate resistance, security, and modern acoustic comfort.
ZEKIN Customized Aluminum Patio Balcony Sliding Doors Double Tempered Glass Heavy Duty Glass Door
High Security Exterior Main Entrance Doors Customized Wooden & Aluminum Pivot Front Entry Door
Florida Hurricane Impact Wrought Iron Front Door Wrought Iron Double Entry Doors
China Top Manufacturer Security Doors Custom Fireproof Aluminum Entrance Doors Commercial

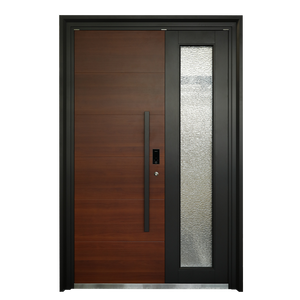

Aluminum Security French Door Waterproof Exterior Entry Door for Hotel Apartment Villa
China Manufacturer Swing Open Aluminium Glass French Doors Double Panel Exterior Door
Modern Hurricane Impact Double Tempered Glass French Swing Door Aluminum Sound Proof
Technical Intelligence
Engineering Superior Thermal Break Aluminum Systems
An in-depth analysis of structural integrity, polyamide barrier physics, and acoustic engineering for enterprise procurement managers and architectural specifiers.
Polyamide (PA66 GF25) Thermal Barriers
Standard non-thermal aluminum profiles act as direct thermal conductors, leading to significant energy loss and interior condensation. High-end Chinese manufacturers integrate PA66 GF25 (25% glass fiber reinforced polyamide) thermal struts.
Thermal Conductivity reduction from 200 W/m·K to under 0.3 W/m·K.
This structural separation stops heat transfer, allowing profile systems to easily meet stringent U-factor benchmarks mandated by NFRC and European CE requirements.
Extrusion Alloy & Surface Treatments
Leading factories in Foshan utilize architectural grade 6063-T5 / 6063-T6 aluminum alloys, precision-extruded to wall thicknesses exceeding 2.0mm for heavy-duty entry systems and large-span sliding panels.
Surface Treatments: Fluorocarbon PVDF coating & Anodizing.
Coatings provide exceptional resistance to salt-spray corrosion, UV degradation, and mechanical wear in severe coastal environment deployments.
Advanced Glazing & Soundproofing
Acoustic dampening and structural safety are achieved using multi-chamber double/triple tempered glass units filled with 90%+ Argon gas, integrated with warm-edge spacers.
Acoustic Reduction: Up to 45 dB noise attenuation.
Options for Florida Miami-Dade hurricane impact compliance incorporate SGP/PVB laminated glass matrices capable of absorbing severe wind loads and flying debris forces.
Comparative Technical Matrix: Standard vs. Advanced Thermal Break Doors
When sourcing from China's top exporters, evaluating profile engineering parameters is crucial for long-term project durability. Below is a specification breakdown for enterprise projects:
| Performance Benchmark | Standard Aluminum Systems | High-Spec Thermal Break Systems (Vancoor) | Compliance Standard |
|---|---|---|---|
| Thermal Insulation (U-Value) | > 3.5 W/m²·K | 1.0 - 1.6 W/m²·K | NFRC / ENERGY STAR / CE |
| Air Infiltration Rate | 0.5 - 1.0 cfm/ft² | ≤ 0.08 cfm/ft² (Triple EPDM Sealing) | ASTM E283 / EN 12207 |
| Water Penetration Resistance | 300 Pa | ≥ 700 Pa (Concealed Drainage) | ASTM E331 / EN 12208 |
| Acoustic Rating (STC / Rw) | 28 - 32 dB | 40 - 48 dB (Multi-Cavity Fill) | ASTM E90 / ISO 140-3 |
| Structural Wind Load | 1.5 kPa - 2.5 kPa | Up to 5.0 kPa (Hurricane Impact Rated) | TAS 201/202/203 (Miami-Dade) |
Market Outlook
Future Sourcing & Manufacturing Trends (2026–2030)
Key technological and regulatory shifts reshaping global aluminum door procurement from Chinese manufacturing hubs.
1. Ultra-Narrow Sightlines & Panoramic Glazing
Architectural demand is rapidly shifting toward minimal frame exposure. Future manufacturing focuses on concealed outer frames, flush threshold transitions, and heavy-duty concealed roller hardware supporting glass panels up to 800 kg per sash.
2. Zero-Carbon Extrusion & Recycled Aluminum
With global green building certifications (LEED, BREEAM) enforcing strict embodied carbon limits, leading Chinese factories are incorporating high-grade recycled aluminum billets processed via hydro-electric powered smelters, drastically reducing scope 1 & 2 emissions.
3. Smart Access & Mechatronic Integration
Modern entry door systems are evolving into smart home hubs. Expect increased pre-factory integration of motorized multi-point locks, biological biometric sensors (3D facial scanning), and automated perimeter seals operating seamlessly via building management networks.
Why Partner With Us
Vancoor Manufacturing Capabilities & Export Excellence
Operating from Foshan, China—the world's premier aluminum cluster—we deliver factory-direct precision engineered systems backed by over 30 years of global export leadership.
50,000 m² Production Base
Our expansive industrial plant houses state-of-the-art multi-axis CNC machining centers, automated insulating glass lines, and continuous powder coating facilities. We maintain an annual capacity exceeding 500,000 square meters of finished fenestration units.
Drawing-Based Customization
Every commercial order is manufactured to exact project specifications. Our dedicated English-speaking project engineering team reviews CAD/PDF architectural plans, generating detailed shop drawings, wind-load calculations, and 3D cross-sections within 24 hours.
30+ Patents & Global Compliance
With three decades of continuous R&D, Vancoor holds over 30 proprietary technology patents focusing on silent system operation and weather sealing. Our products come complete with comprehensive compliance files for US, EU, Australian, and Middle Eastern codes.
End-to-End Export Logistics & Quality Control
From raw profile extrusion to export container loading, Vancoor maintains total quality control. Every door assembly undergoes rigorous multi-stage testing including frame squareness verification, hardware cycle endurance checks, and air/water infiltration testing. To ensure pristine condition upon arrival at your jobsite, finished units are protected by multi-layer PE film, shock-absorbing corner guards, and fully fumigated plywood crates reinforced for heavy ocean freight transit.
Procurement Guidance
Frequently Asked Questions for B2B Sourcing
Essential technical and logistical answers for international project managers, importers, and architectural developers.
What is the typical production lead time for custom thermal break aluminum doors?
After shop drawings are officially approved and order deposits confirmed, standard manufacturing and assembly require 4 to 5 weeks. Complex custom configurations, specialized anodized finishes, or bullet-resistant laminated glass packages may extend lead times by 7-10 working days. Ocean freight times vary depending on the destination port (e.g., West Coast USA: ~14-18 days, Europe: ~28-35 days).
Can Vancoor manufacture systems compliant with local building codes (e.g., NFRC, Florida Impact, AS2047)?
Yes. Our engineering division tailors profile profiles, glass stack-ups, and locking hardware to meet target regional standards. We provide physical test reports and certified compliance documentation covering thermal U-values, SHGC ratings, structural wind load limits, and impact resistance for North America (NFRC/ASTM), Europe (CE/EN standard), Australia/New Zealand (AS2047/AS1288), and the Middle East.
How do you handle custom architectural drawings and custom dimensions?
100% of our door production is made-to-measure. Buyers simply provide CAD (.dwg/.dxf) or PDF architectural schematics. Our technical desk generates comprehensive shop drawings—detailing frame mullions, thermal breaks, anchoring points, glass specs, and hardware layouts—within 24 hours for sign-off prior to production.
What packaging protocols prevent damage during long-distance maritime freight?
Every door frame and sash is individually wrapped in protective anti-scratch film and impact-resistant foam edge guards. Packed units are grouped into heavy-duty, fully enclosed fumigated wooden cases equipped with internal steel straps and moisture-absorbing desiccant packs, minimizing movement and eliminating moisture risk inside containers.
What technical support and warranties are provided for overseas projects?
Vancoor offers comprehensive remote engineering support throughout your installation phase. Each shipment includes step-by-step installation manuals and high-definition video walkthroughs. Our English-speaking technical project managers are available via video conference across global time zones. All aluminum profiles carry a 10-to-20-year structural warranty depending on surface coating choice.
Ready to Upgrade Your Project's Fenestration Performance?
Submit your architectural drawings or bill of quantities today. Our senior engineering team will analyze your specifications and return a factory-direct quote and technical proposal within 24 hours.
