Engineered for high-end luxury villas, modern residential developments, and commercial entrances. Custom manufactured to exact project CAD specifications with global code compliance.
Engineered with multi-chamber cast aluminum structure, double EPDM perimeter gaskets, and high-impact acoustic glass infill for maximum sound isolation and structural security.
Features heavy-duty German concealed offset pivot hinges capable of holding up to 800kg, configured with thermal break aluminum frames designed to meet US and Australian codes.
Florida Building Code (FBC) compliance ready. Constructed with SGP laminated impact glass and reinforced 6063-T6 aluminum profiles for extreme coastal wind-load endurance.

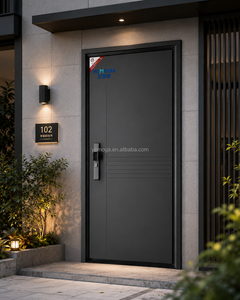

Heavy-gauge armored steel core pivot entrance system tailored for multi-family apartment towers and boutique hotel facades, featuring integrated smart keyless access control.
Combines artisanal cast aluminum decorative panels with modern hydraulic self-closing pivot mechanisms, delivering exceptional curb appeal and certified anti-burglary protection.
Grand scale entrance design integrating matching fixed sidelights and transom panels. Matte black powder-coated aluminum framing with customizable architectural mullion gridwork.

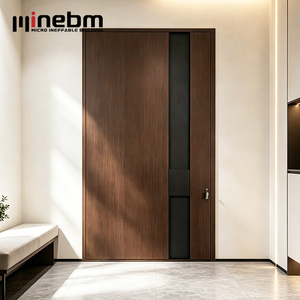

Minimalist flush-panel pivot entry door finished in high-end Italian wood-grain cladding or stone-veneer composite panels, engineered with PA66 thermal barrier insulation.

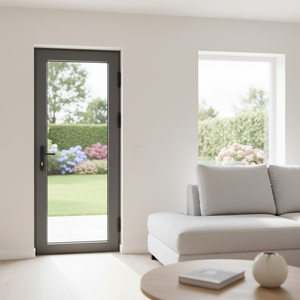

Optimized 60mm profile depth architectural entrance door featuring multi-chamber thermal breaks, fluorocarbon surface finish, and precision multi-point lock systems.
An authoritative technical evaluation of structural kinematics, thermal envelope compliance, surface metallurgy, and global supply chain dynamics for architectural pivot entrance systems.
In high-end architectural design, the entrance door is no longer merely a point of ingress; it serves as a critical structural and aesthetic statement. Custom OEM pivot entry doors have revolutionized luxury residential villas and prestige commercial headquarters across North America, Europe, Australia, and the Middle East. By shifting the rotational axis away from the door frame onto concealed floor and transom pivot pins, architectural pivot systems allow for unprecedented sash dimensions—frequently exceeding 3.5 meters in height and 2.2 meters in width—without compromising ergonomic operation or structural integrity.
Floor-anchored hydraulic pivot spindles transfer sash dead-load directly into the concrete slab, eliminating frame warp and hinge sag common to traditional butt-hinged grand doors.
Utilizes polyamide PA66 GF25 thermal breaks and triple-sealed EPDM drop-down bottom seals to achieve U-factors below 0.18 BTU/hr·ft²·°F (ISO 10077 compliance).
Integrated multi-point motorized locking pins with biometrically encrypted access controllers, compatible with RS485 and smart building automation protocols.
Traditional hinged doors rely on side-mounted butt hinges that transfer immense cantilever forces onto the vertical jamb. As architects demand larger entrance panels, side hinges experience excessive wear, leading to sash sag, latch misalignment, and air seal degradation. OEM custom pivot doors bypass this physical constraint completely. By positioning heavy-duty floor-mounted hydraulic pivot spindles offset from the frame edge, dead-weight loads up to 1,000 kg (2,200 lbs) are transferred vertically straight into the structural slab.
Modern B2B specifications for high-traffic or high-wind environments require continuous hydraulic dampening, 90-degree hold-open functions, self-closing speed controls, and zero-gravity balance adjustment. Top-tier manufacturers like Vancoor Entrance System Co., Ltd. integrate floor box systems with 3D adjustability (±5mm lateral, ±3mm height), allowing site installers to dial in micro-precise perimeter clearances for flawless weatherproofing and effortless fingertip actuation.
A primary challenge historically associated with oversized pivot entrance doors was maintaining thermal continuity and air-tightness. Unlike rebated casement doors that compress gaskets evenly along four sides, pivot doors rotate through two planes, making perimeter sealing technically complex.
To overcome this, leading OEM exporters utilize advanced multi-chamber 6063-T6 extruded aluminum profiles reinforced with 24mm to 34mm PA66 GF25 (25% glass fiber reinforced polyamide) thermal barrier strips. The core of the door panel incorporates high-density polyurethane or rockwool insulation infills, delivering thermal resistance that satisfies NFRC (US) and CE (EU) stringent building energy codes.
Furthermore, air infiltration and water penetration are mitigated via dynamic pneumatic drop-down bottom seals. When the pivot door closes, an internal mechanical actuator deploys a silicone seal strip firmly against the flush floor threshold, achieving zero-step threshold aesthetics without sacrificing Class 4 air-tightness (EN 12207) or water tightness under pressure (DP 60+ ratings).
For B2B buyers sourcing custom aluminum pivot doors for oceanfront projects or extreme industrial climates, coating longevity is a core priority. Profiles undergo pre-treatment anodizing or chromate conversion followed by electrostatically applied PVDF (Polyvinylidene Fluoride) 3-Coat Fluorocarbon Coatings or AkzoNobel Interpon architectural powder coatings.
This surface engineering withstands up to 3,000 hours of continuous salt spray testing (ASTM B117), earning C5-M extreme marine corrosion resistance ratings. Cast aluminum faceplates and extruded structural frames remain immune to UV degradation, chalking, blistering, and thermal expansion warp across operating temperatures ranging from -40°C to +80°C.
Modern luxury developments demand seamless integration between physical security and digital access control. OEM custom pivot doors produced for export markets are configured to house internal wiring conduits within the thermal break chambers. Heavy-duty electromechanical multi-point locks engage steel locking bolts into the top header and bottom sill simultaneously upon door closure.
Biometric fingerprint readers, 3D facial recognition cameras, hidden RFID transponders, and mobile app Bluetooth/Wi-Fi gateways can be flush-mounted directly into custom-machined pull handles or aluminum sash stiles, allowing zero-key operational convenience with bank-level encryption security.
A comparative performance summary highlighting engineering metrics critical for architectural specification submittals.
| Performance Parameter | Custom OEM Pivot Entry System | Traditional Butt-Hinged Entry Door | Architectural Procurement Advantage |
|---|---|---|---|
| Maximum Sash Dimension | Up to 3,000mm W × 4,500mm H | Limited to ~1,100mm W × 2,400mm H | Enables grand architectural entrance statements without multi-panel breaks. |
| Weight Bearing Capacity | 300 kg to 1,000 kg (Floor Pivot) | Max 120 kg (Side Frame Stress) | Accommodates heavy cast aluminum, armored steel, and triple-pane impact glass. |
| Structural Load Path | Direct vertical load into ground slab | Lateral tension force on vertical frame | Prevents frame distortion, jam binding, and long-term wall structural stress. |
| Thermal Insulation (U-Factor) | 0.18 - 0.28 BTU/hr·ft²·°F (PA66 Break) | 0.25 - 0.35 BTU/hr·ft²·°F | Meets Passive House and US Title 24 high-efficiency thermal standards. |
| Threshold Design | Flush Zero-Barrier with Drop Seals | Raised Rebated Threshold Step | Delivers ADA-compliant seamless indoor-outdoor transition aesthetics. |
| Wind-Load / DP Rating | DP 50 to DP 85+ (Impact Reinforced) | DP 30 to DP 50 | Certified structural capacity for high-rise commercial & hurricane coastal zones. |
| Acoustic Rating (STC) | 38 dB - 45 dB Sound Proofing | 28 dB - 35 dB Standard | Blocks urban traffic, aircraft noise, and ambient acoustic pollution. |
Market intelligence for real estate developers, window & door importers, and general contractors navigating the next decade of fenestration procurement.
Standard off-the-shelf door inventory is rapidly declining in favor of 100% drawing-based OEM fabrication. Global buyers require suppliers capable of delivering signed CAD/BIM shop drawings within 24 hours to accelerate construction schedules.
Importers no longer risk uncertified doors. Successful global sourcing requires suppliers with validated structural, water, and thermal lab test reports specific to target destination countries, including Florida Hurricane NOA standard compliance.
By eliminating middle-man distributors, procurement directors achieve 30-40% cost efficiency. Leading manufacturing hubs like Foshan, China provide end-to-end extrusion, CNC machining, glass lamination, and export packing under one roof.
Combining 30+ years of engineering heritage with a 50,000 m² production footprint to power large-scale international commercial and residential projects.
Established in 1993 in Foshan, China—the world's premier aluminum extrusion manufacturing hub—Vancoor Entrance System Co., Ltd. (Vancoor Front Door) has grown into a dominant export manufacturer of custom thermal break aluminum windows, luxury entry doors, and heavy-duty pivot entrance systems.
Equipped with modern 5-axis German CNC machining centers, automated profile powder coating lines, and precision insulating glass assembly units for total quality control.
Continuous R&D investment resulting in proprietary silent system noise reduction profiles, thermal break barrier locks, and hurricane-resistant sash corner joints.
Our experienced English-speaking project engineering team reviews architect blueprints, structural wind loads, and returns custom shop drawings within 24 hours.
Every pivot door unit is wrapped in multi-layer protective film, fitted with heavy EPE corner guards, and enclosed in ISPM-15 compliant fumigated wooden crates with steel frame bases.
Clear, definitive answers to technical, structural, commercial, and logistical questions encountered during international fenestration procurement.
Once CAD shop drawings are officially signed off and deposit payment is confirmed, standard production and rigorous assembly testing take 4 to 5 weeks. For large multi-unit project contracts, phased container shipments can be scheduled according to project milestone demands.
Yes. Our engineering team configures profile wall thicknesses (up to 3.0mm structural extrusion), thermal break PA66 strip depth, double or triple glass build-ups (e.g., Low-E argon-filled, heat-soak tested, or SGP laminated impact glass), and hardware to ensure full compliance with North American NFRC/ASTM, European CE EN14351-1, and Australian AS2047 standards.
We utilize a dual-defense sealing strategy: continuous EPDM weather-stripping along the vertical and top frame jambs, coupled with dynamic automatic drop-down bottom seal mechanisms. As the door reaches its fully closed position, an internal mechanical pin deploys a heavy-duty silicone gasket against the floor threshold, creating an air-tight and water-resistant barrier without raised steps.
We offer full OEM customization including Fluorocarbon PVDF 3-coat spraying (ideal for coastal UV and salt spray environments), architectural anodizing, textured powder coating in any RAL color, Italian thermal transfer wood-grain finishes, and real stone veneer composite panels fused onto cast aluminum backings.
Vancoor provides a 10-year structural warranty on all aluminum extrusions and thermal breaks, along with 5-year warranties on surface coatings and German-engineered pivot hardware. We provide comprehensive step-by-step CAD installation guides, high-definition installation videos, and direct video call technical support with our project engineers.
Each sash and frame is individually protective-filmed, encased in dense EPE foam corner guards, vacuum-wrapped against moisture, and secured inside custom-built fumigated plywood crates featuring reinforced internal steel skids. This prevents rack shifting, glass flex, and transit vibration damage during long-distance ocean shipping.
Send us your project CAD drawings, elevation schedules, or design specifications. Our engineering team will review your requirements and provide a full factory-direct proposal within 24 hours.
