Export-Grade Modern Aluminum Entry Systems for Swiss Architecture
Engineered for extreme Alpine thermal efficiency, structural rigidity, and sleek minimalist visual balance. Explore our audited export product lineup tailored for residential, commercial, and chalet applications.
NFRC Modern Wrought Iron Security Commercial Exterior Thermal Insulation Front Entry Door
Contact Us

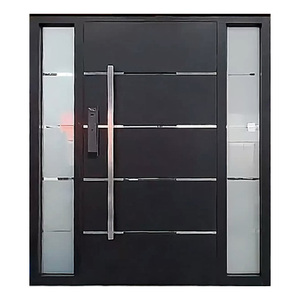

Modern European Security Front Entry Interior Doors Waterproof Aluminum Alloy
Contact Us
Custom Luxury Matte Black Wrought Iron Arched French Double Entry Door Clear Glass
Contact Us

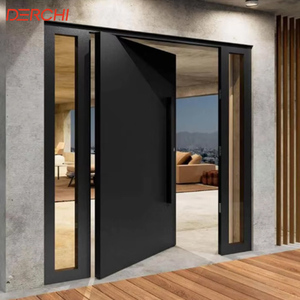

High Quality Exterior Entrance Cast Aluminium Front Main Door Modern Residential With Glass Pivot
Contact Us

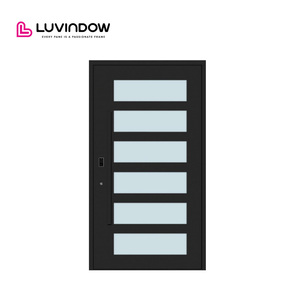

Secure Large Opening Aluminum Entry Pivot Doors for High End Residential Communities
Contact Us
European Standard House Black Metal Patio Exterior Thermal Break Aluminum Doors
Contact Us

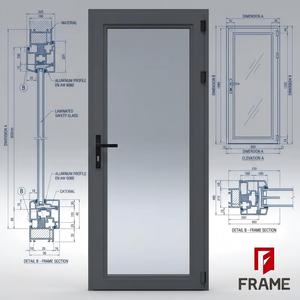

High Quality Aluminium Door Single Double Glass Indoor Single Casement Swing External Or Internal
Contact Us
Exterior Modern Anti-theft Custom Aluminum Alloy Outdoor Safety Door with Pivot Swing for Luxury Villa
Contact UsArchitectural Fenestration Trends & Building Performance Norms in Switzerland
An in-depth analysis of thermal insulation requirements, SIA code compliance, and OEM/ODM custom manufacturing strategies for Swiss property developers and general contractors.
Thermal Performance & Minergie Standard Rigor
Switzerland presents one of the most demanding building physics environments in Western Europe. Divided between the severe sub-zero winter temperatures of Alpine elevations (such as in Valais, Graubünden, and the Bernese Oberland) and the sub-alpine humidity of the Swiss Plateau (Zurich, Bern, Lucerne), entrance door systems must deliver extraordinary thermal isolation.
The Swiss Minergie and Minergie-P standards dictate strict overall heat transfer coefficients. Exterior entrance doors must achieve overall U-values ($U_d$) below 0.80 W/(m²·K), and in many ultra-low energy passive home specs, as low as 0.72 W/(m²·K). Standard aluminum profiles fail under these metrics without advanced multi-chamber thermal breaks and composite polyamide barriers.
Swiss Building Code SIA 331 & Resistance Classes
Compliance with the Swiss Society of Engineers and Architects (SIA) regulations—specifically SIA 331 (Windows and Exterior Doors) and SIA 343—is mandatory for project sign-offs. These codes govern wind load resistance, air permeability, and watertightness under driven rainfall conditions.
Furthermore, Swiss property owners and institutional insurers heavily emphasize burglary prevention. Entrance systems imported for luxury Swiss residences must meet European Norm DIN EN 1627 Resistance Classes RC2 or RC3, incorporating multi-point motorized locking, continuous anti-pry hook bolts, and heavy-duty concealed hinges capable of withstanding physical intrusion attempts.
Information Gain Metric: Unlike standard export doors that utilize non-insulated aluminum profiles, Vancoor’s OEM/ODM Swiss-Series entrance systems integrate continuous 34mm PA66 GF25 thermal break strips, triple EPDM rebate gaskets, and vacuum-insulated panel (VIP) cores, achieving certified U-values down to 0.75 W/(m²·K) without compromising slender sightlines.
OEM/ODM Manufacturing Capabilities for Swiss Specifications
From custom architectural CAD drawings to automated multi-axis CNC fabrication, our manufacturing infrastructure delivers tailored entrance solutions for demanding European importers.
Architectural CAD & BIM Integration
Our in-house design engineering team converts Swiss client CAD plans, BIM models, and architectural cross-sections into precise shop drawings within 24 hours. Every structural clearance, threshold height, and wall-anchoring detail is verified against localcantonal building codes.
High-Durability Surface Coatings
Swiss high-altitude UV radiation and severe freeze-thaw cycles require superior surface protection. We utilize Qualicoat Class 2 / Class 3 architectural powder coatings (AkzoNobel / Tiger Drylac) and 25-micron anodization finishes resistant to coastal air, acid rain, and heavy snowfall exposure.
European Hardware & Smart Access
Full hardware compatibility with premium European lock systems including KFV, GU, Siegenia, and Winkhaus. We integrate biometrics, Bluetooth, keypad access, concealed automatic door operators, and floor springs designed for heavy traffic doors weighing up to 350 kg.
Localized Swiss Application Scenarios
Explore how Vancoor custom aluminum entrance systems excel across diverse architectural landscapes in Switzerland.
1. Luxury Alpine Chalets & Mountain Estates
Valais · Graubünden · Zermatt · St. MoritzHigh-altitude luxury residences face extreme temperature drops, heavy snow accumulation, and fierce winds. Our Alpine-grade heavy-duty pivot and double-leaf entry doors feature quad EPDM rubber seals, continuous thermal breaks, and low-emissivity triple glass. This prevents internal frost condensation, thermal bridging, and frame distortion under severe winter loads.
2. Minergie-P Certified Ultra-Low Energy Villas
Zurich Goldcoast · Geneva · Zug · LucerneModern minimalist villas demanding large-format entrance openings (up to 3 meters in height) with near-zero heat loss. Vancoor supplies flush aluminum entry doors with aerogel thermal insulation cores and warm-edge glass spacers. These configurations achieve passive house standards, reducing heating energy consumption while seamlessly integrating smart home automation.
3. Commercial Headquarters & Mixed-Use Complexes
Basel · Lausanne · Bern · WinterthurHigh-traffic commercial entrances require exceptional cycle durability, anti-panic emergency hardware, and integrated access control. Our commercial aluminum doors undergo 500,000-cycle durability testing, featuring heavy-wall 6063-T6 extrusions (3.0mm structural thickness) and concealed automatic operators for wheelchair accessibility (SIA 500 barrier-free compliance).
4. Historic Renovations & Retrofit Projects
Old Towns of St. Gallen, Fribourg · BellinzonaReplacing traditional timber or iron entrance doors in historic cantons requires preserving classical aesthetics while incorporating 21st-century thermal and security tech. Through custom ODM moulding, we replicate historic arched profiles, decorative wrought iron lattice glass panels, and matte textured finishes integrated into modern insulated aluminum frames.
Swiss-Series Technical Performance Data Matrix
Review the verified engineering parameters across our standard, premium thermal break, and passive-level Swiss aluminum door configurations.
| Performance Indicator | Standard Commercial Series | Swiss Alpine Thermal Break | Minergie-P Passive Extreme |
|---|---|---|---|
| Profile Alloy & Wall Thickness | 6063-T5 / 2.0mm | 6063-T6 / 2.5mm | 6063-T6 Architectural / 3.0mm |
| Thermal Insulation Strip | 14mm PA66 Polyamide | 24mm - 34mm Technoform PA66 GF25 | 34mm Multi-Chamber Polyurethane Foam Filled |
| Overall U-Value ($U_d$) | 1.6 – 2.0 W/(m²·K) | 0.9 – 1.2 W/(m²·K) | ≤ 0.75 W/(m²·K) |
| Burglary Protection Rating | EN 1627 RC1 / Basic Multi-Lock | EN 1627 RC2 Certified | EN 1627 RC3 Certified (Anti-Drill/Anti-Pry) |
| Glazing System | Double Tempered (5+12A+5) | Triple Tempered Low-E (6+14Ar+6+14Ar+6) | Quadruple Laminated Vacuum Low-E + Argon |
| Air Permeability (EN 12207) | Class 3 | Class 4 (Highest European Grade) | Class 4 (Airtight Passive Seal) |
| Watertightness (EN 12208) | Class 7A (300 Pa) | Class 9A (600 Pa) | Class E1050 (1050 Pa Extreme Storm) |
| Acoustic Insulation ($R_w$) | 32 dB – 35 dB | 38 dB – 42 dB | 43 dB – 48 dB (Acoustic Laminate) |
Why Swiss Buyers Trust Vancoor Entrance System Co., Ltd.
Over three decades of manufacturing mastery, international compliance certifications, and total supply-chain control direct from Foshan, China.
30+ Years Industry Heritage
Established in 1993 in Foshan—the world’s premier aluminum extrusion hub—Vancoor has grown from a specialized metal workshop into an advanced fenestration enterprise employing over 230 technicians and project engineers.
30+ Patents & Testing Protocols
We hold more than 30 utility and invention patents in silent system damping, thermal bridge elimination, and water-deflection thresholds. Every production batch undergoes strict air-water-pressure chamber testing prior to packing.
100% Pre-Assembly Guarantee
To ensure zero job-site errors in Switzerland, every door frame, leaf, lock, and pivot system is completely test-assembled on factory jig fixtures before being protected in multi-layer foam and export-grade wooden crates.
Frequently Asked Questions by Swiss Importers & Architects
Clear, authoritative answers regarding compliance, shipping, custom drawings, and ordering logistics for Switzerland.
Our Swiss-series doors utilize 34mm multi-chamber Technoform PA66 GF25 thermal break strips combined with polyurethane insulating foam and triple/quadruple glazed Low-E argon-filled glass units. This engineering configuration lowers the overall door U-value ($U_d$) to ≤ 0.75 W/(m²·K), meeting Minergie and Minergie-P standards. Test certificates and thermal simulation reports can be provided with project quotes.
Yes, 100% of our production is made-to-measure. You can submit CAD (.dwg/.dxf), BIM (.rvt), or PDF plans from your Swiss architectural office. Our engineering team will return comprehensive shop drawings detailing profile cross-sections, thermal break alignments, wall anchoring points, and threshold details within 24 hours for approval.
Standard production takes 4 to 5 weeks following shop drawing confirmation. Sea freight from Shenzhen/Guangzhou ports to northern European hubs (Rotterdam, Hamburg, or Antwerp) takes approximately 28–32 days, followed by bonded rail or truck transport directly to Swiss cantons (e.g., Zurich, Basel, Bern, Geneva). Direct rail freight options (China-Europe Railway Express) are also available for expedited 18-day transit.
We integrate genuine European multi-point locking systems, including German KFV, GU, and Winkhaus motorized 3-point and 5-point automatic locks. Features include anti-drill manganese steel plates, heavy-duty anti-pry hook bolts, biometric fingerprint scanners, and integration readiness for Swiss building management systems (BMS).
We offer flexible shipping terms including FOB, CIF, and DDP (Delivered Duty Paid). Under DDP, Vancoor handles all export documentation, international freight, Swiss customs clearance, and payment of Swiss import duties and VAT (8.1% MwSt). Your shipment arrives directly at your construction site or warehouse in Switzerland without paperwork headaches.
We provide a 10-year warranty on structural aluminum extrusions and surface coatings, and a 5-year warranty on hardware mechanisms and glass seal integrity. In addition, we supply detailed installation guides, video walkthroughs, and technical support. Spare hardware components are archived in our system for rapid express dispatch whenever needed.
Request Factory-Direct Pricing & Engineering Consultation for Switzerland
Partner directly with Vancoor Entrance System Co., Ltd. for your upcoming residential villa, Alpine chalet, or commercial project in Switzerland. Receive shop drawings, thermal simulation reports, and wholesale quotes within 24 hours.
